postprosser not working for me
postprosser not working for me

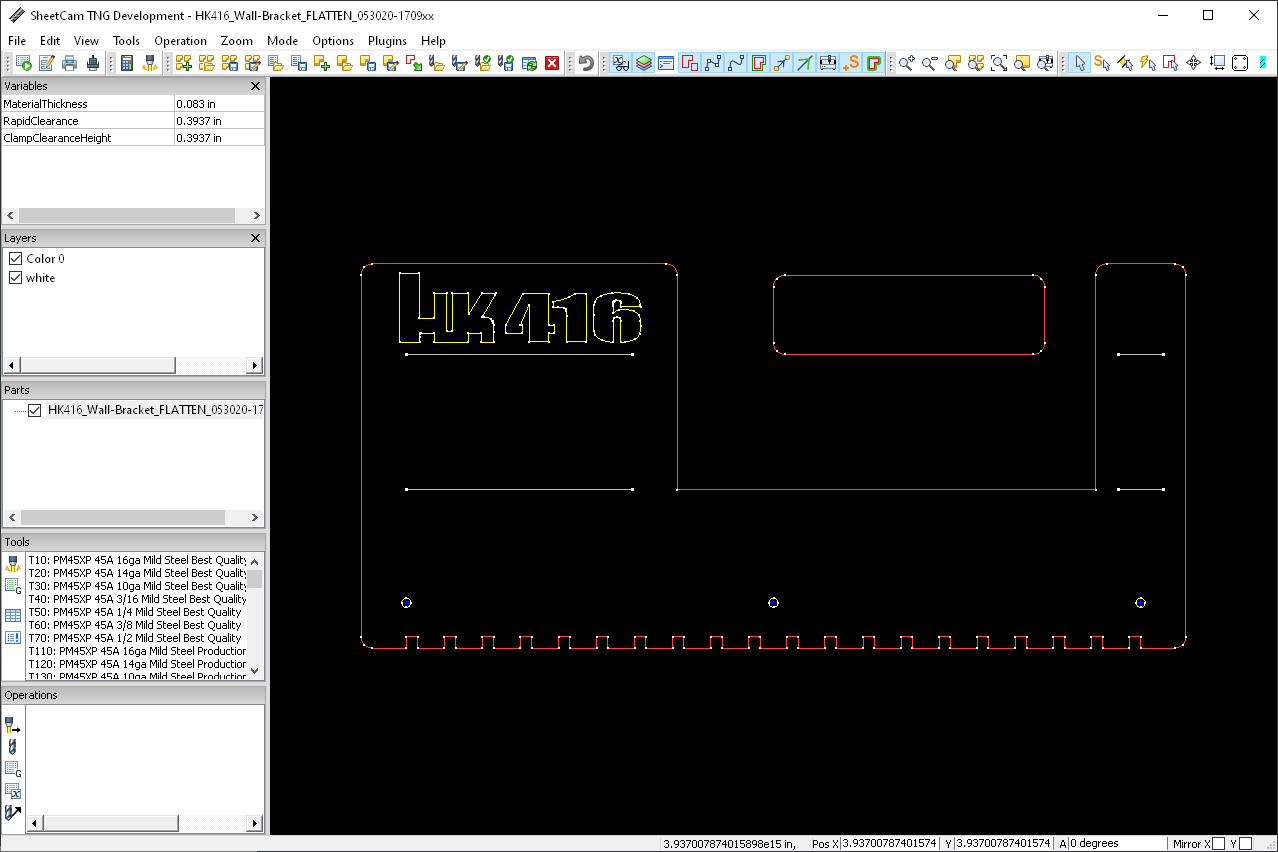

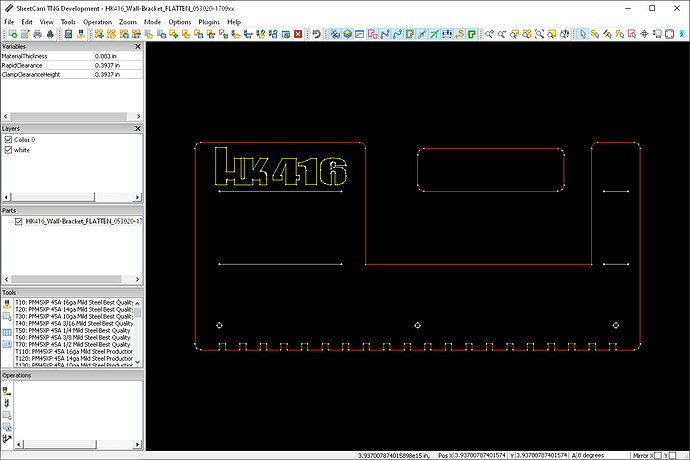

hay there i love sheetcam so far how ever i cant really use it so well i have an older hpgl style router the hpgl 3d post seems to work but the
Z hights are all wrong and the feed rate is not being sent trough and i cant seem to find the ONsetfeedrate part of the post
i have a post for desk proto that is so simple but works amasingly
all it has is for 3d moves=
ZM x,y,z;
set feedrate =
VS#;
rapids = PU x,y,z
no AA comarnds used and works like a charm
the AA in the HPGL 3D post work ok to but for some reson if i program
something to say cut at 3mm it will only cut at about 1.5 mm
hpgl scale is good ive cut a shape and mesured it and its perfect
could you please re work the post for me i have spent meny hours trying to do it but i am afraid i dont quite understand how sheetcam posts are worked
i allso need to remove the tool change from the post so regardless of the tool used in sheet cam the post still reeds SP2 an not related to the tool used in sheetcam
your help would be verry much apresheted
thank you heaps
Z hights are all wrong and the feed rate is not being sent trough and i cant seem to find the ONsetfeedrate part of the post
i have a post for desk proto that is so simple but works amasingly
all it has is for 3d moves=
ZM x,y,z;
set feedrate =
VS#;
rapids = PU x,y,z
no AA comarnds used and works like a charm
the AA in the HPGL 3D post work ok to but for some reson if i program
something to say cut at 3mm it will only cut at about 1.5 mm
hpgl scale is good ive cut a shape and mesured it and its perfect
could you please re work the post for me i have spent meny hours trying to do it but i am afraid i dont quite understand how sheetcam posts are worked
i allso need to remove the tool change from the post so regardless of the tool used in sheet cam the post still reeds SP2 an not related to the tool used in sheetcam
your help would be verry much apresheted
thank you heaps
heres is a good post from my desk proto
- Attachments
-
- DOLFINS 120MM.plt
- (171.86 KiB) Downloaded 1607 times
Last edited by nccuctoms on Tue May 05, 2015 8:27 am, edited 1 time in total.
heres is a good post from my desk proto
- Attachments
-
- DOLFINS 120MM.plt
- goot desk proto post
- (171.86 KiB) Downloaded 1307 times
-
- 200mm dragon.plt
- post tht dose not work from sheetcam
- (3.19 KiB) Downloaded 1377 times
tekcel post plot language
here is the hpgl 3d plot language my router uses hopefully one of you gurus can help me to get sheet cam to make it
SP select pen (tool select ) i have not tool changer so i need it to reed SP2 all the time
syntax
SP;
SP toolnumber;
SP toolnumber,spindlespees;
syntax
VS, velocity select (set feed rate )
VSvelocity; number = feed rate in mm/sec
PA, plot absolute (sets absolute progmaming)
syntax
PAxpos,ypos
if pen up rapid feed used
if pen down profiling feedrate used
PU pen up (pen up move )
syntax
PUxpos,ypos; (move to pos with pen up)
PU ( rase tool to safe Z)
PD pen down ( pen down move )
syntax
PDxpos,ypos;
(moves with tool down an feed set by VS comarnd )
AA absolute arc
syntax
(AA darws an arc starting an current location)
AAxcenter,ycenter,sweepangle ;
(sweep angle is the angle in degreese trough wich the
arc is darwn a positive angle darws counter clockwise )
AA10000,10000,360 (plot a circle with center x100y100)
ZM 3 dimensional move
syntax
ZMxpos,ypos,zdepth;
(Auto pen down with ZM move will move from current to new pos with VS feed rate an !VZ plunge rate for z axis
!vz z axis feed rate
syntax
!vzvelocity;
!vz10.3;(sets z velocity to 10.3mm/sec)
!PZ set plunge depth
syntax
!PZplunge-depth; (sets only pen down depth)
!PZplunge-depth,safe-hight; (sets plunge depth and safe hight)
!PZ-500,300; (set plunge depth to 5mm and safe hight to 3mm)
!PZ-1000; (set plunge to 10mm)
MG send message to operator screen
syntax
MGmesage;(message will be desplayed on the operator screen)
NR not ready (M00 stop press start to continue)
syntax
NR; ( macheine will stop untill start button is pressed )
all examples in the code above uses 100 hpgl steps per mm
and programing is absolute
this is standard hpgl 2 language or MIMAKI ME-500
ANY HELP GETTIN SHEETCAM TO MAKE THIS POST WOULD BE GREATLY APRESHETED
CURRANTLY I AM MAKING ALL MY TOOL PARTHS IN CAD AND IT TAKES ME A COUPLE OF HOURS TO PROGRAM EACH JOB WICH IS USED ONLY ONCE
SP select pen (tool select ) i have not tool changer so i need it to reed SP2 all the time
syntax
SP;
SP toolnumber;
SP toolnumber,spindlespees;
syntax
VS, velocity select (set feed rate )
VSvelocity; number = feed rate in mm/sec
PA, plot absolute (sets absolute progmaming)
syntax
PAxpos,ypos
if pen up rapid feed used
if pen down profiling feedrate used
PU pen up (pen up move )
syntax
PUxpos,ypos; (move to pos with pen up)
PU ( rase tool to safe Z)
PD pen down ( pen down move )
syntax
PDxpos,ypos;
(moves with tool down an feed set by VS comarnd )
AA absolute arc
syntax
(AA darws an arc starting an current location)
AAxcenter,ycenter,sweepangle ;
(sweep angle is the angle in degreese trough wich the
arc is darwn a positive angle darws counter clockwise )
AA10000,10000,360 (plot a circle with center x100y100)
ZM 3 dimensional move
syntax
ZMxpos,ypos,zdepth;
(Auto pen down with ZM move will move from current to new pos with VS feed rate an !VZ plunge rate for z axis
!vz z axis feed rate
syntax
!vzvelocity;
!vz10.3;(sets z velocity to 10.3mm/sec)
!PZ set plunge depth
syntax
!PZplunge-depth; (sets only pen down depth)
!PZplunge-depth,safe-hight; (sets plunge depth and safe hight)
!PZ-500,300; (set plunge depth to 5mm and safe hight to 3mm)
!PZ-1000; (set plunge to 10mm)
MG send message to operator screen
syntax
MGmesage;(message will be desplayed on the operator screen)
NR not ready (M00 stop press start to continue)
syntax
NR; ( macheine will stop untill start button is pressed )
all examples in the code above uses 100 hpgl steps per mm
and programing is absolute
this is standard hpgl 2 language or MIMAKI ME-500
ANY HELP GETTIN SHEETCAM TO MAKE THIS POST WOULD BE GREATLY APRESHETED
CURRANTLY I AM MAKING ALL MY TOOL PARTHS IN CAD AND IT TAKES ME A COUPLE OF HOURS TO PROGRAM EACH JOB WICH IS USED ONLY ONCE
This post kind of works
this is the post i was tryin to use
- Attachments
-
- HPGL 3D.scpost
- (2.66 KiB) Downloaded 1397 times
up date
ok les may have the bualk of it sorted got the feeds to work and added code to set z
it is probaly 5x to often but it works none the less
i started with the stock hpgl post and added the !PZ to set plunge
each line
i have been working al day on the post trying it and editing it and re trying on the router
i added in to the oninit
scale = 100
post.Text("IN;PA;PU;\n")
post.Text("VS")
post.Text ( feedRate * scale, "0" ) lastinst = 0
arcscale = -57.2957795130
bigArcs = 1 --stitch arc segments together
minArcSize = 0.05 --arcs smaller than this are converted to moves
note the feedrate is still not being brought in to the program it is allways 0
the post works well but i just have to set the feed once the file is loaded in to the cnc
i changed the tool call to allways reed sp2
think i still need is to add the a stop so i can change the tool when needed
if you could have a look at the post andsee if it is fine and see if you can spot any
issues or a beta way to do the feedrate
or plunge rate
i allso added a set safez in to the tool change so its in the top of the program
any way here is the 2 files the post and the output file
end
it is probaly 5x to often but it works none the less
i started with the stock hpgl post and added the !PZ to set plunge
each line
i have been working al day on the post trying it and editing it and re trying on the router
i added in to the oninit
scale = 100
post.Text("IN;PA;PU;\n")
post.Text("VS")
post.Text ( feedRate * scale, "0" ) lastinst = 0
arcscale = -57.2957795130
bigArcs = 1 --stitch arc segments together
minArcSize = 0.05 --arcs smaller than this are converted to moves
note the feedrate is still not being brought in to the program it is allways 0
the post works well but i just have to set the feed once the file is loaded in to the cnc
i changed the tool call to allways reed sp2
think i still need is to add the a stop so i can change the tool when needed
if you could have a look at the post andsee if it is fine and see if you can spot any
issues or a beta way to do the feedrate
or plunge rate
i allso added a set safez in to the tool change so its in the top of the program
any way here is the 2 files the post and the output file
end
- Attachments
-
- HPGL new 3D.scpost
- this its the best post i could manage
- (2.37 KiB) Downloaded 1320 times
-
- butterfly2.plt
- this is the output file from the above post of the butterfly in the first file i posted
- (7.5 KiB) Downloaded 1430 times
- Les Newell
- Site Admin
- Posts: 3677
- Joined: Thu May 11, 2006 8:12 pm
Sorry it has taken me so long to reply to this thread. Give the attached post a try. It uses ZM 3-axis moves for all moves except arcs.
- Attachments
-
- HPGL 3D MIMAKI.scpost
- (4.15 KiB) Downloaded 1269 times
awsome one les
the post is awsome had to add a ";" to the check feeds and swiched the rapids back to a normal PU endxX endY
the tool change is perfect
one thing that dont work wick is really stupid of this plot language
is when useing a ZM endX endY endZ the -prefix needs to be removed
its stupid becouse with an !PZ -100,400; this sets plunge to -1mm
but in the cace of ZM 100,100,-100 this moves to x100y100 and +1mm
above the top of the work
when the ZM call has a z value it will set the plunge for all other moves
wich is programing awsomely becouse befour each AA it post a ZM with the z value
so in short form is there a way for us to remove the - from the Z feild when posting ZM i allso havent tryed the post for a drill cycle
i will attach a copy of the post you sent me with my tweeks so you can see how it will work
changeing the rapids to PU removes any Z from it and it pen ups to the
!PZ in the header of the program wich is the safez from sheet cam
the tool change is perfect
one thing that dont work wick is really stupid of this plot language
is when useing a ZM endX endY endZ the -prefix needs to be removed
its stupid becouse with an !PZ -100,400; this sets plunge to -1mm
but in the cace of ZM 100,100,-100 this moves to x100y100 and +1mm
above the top of the work
when the ZM call has a z value it will set the plunge for all other moves
wich is programing awsomely becouse befour each AA it post a ZM with the z value
so in short form is there a way for us to remove the - from the Z feild when posting ZM i allso havent tryed the post for a drill cycle
i will attach a copy of the post you sent me with my tweeks so you can see how it will work
changeing the rapids to PU removes any Z from it and it pen ups to the
!PZ in the header of the program wich is the safez from sheet cam
- Attachments
-
- tekcel_HPGL_3D_MIMAKI.scpost
- (3.74 KiB) Downloaded 1644 times
-
- Butterflyles.plt
- you can see the zms have the -z inbetween the AA calls everytrhing elce in this post is amazballs
- (5.55 KiB) Downloaded 1244 times
and no worrys about the time taken to reply it gave me a beter understanding of the way the post works az i spent a good amount of time playin with it trying to figure out how it ticks wich is quite fun tryin out bits of code and then re posting hopeing it works then trying to figure why it dosant i think you do a awsome job with sheetcam its probly the only cam program with this leval of support and its allmost the only one that still supports hpgl other cam programs will tell you na mate your macheine is to old you need to retro fit a new control to itLes Newell wrote:Sorry it has taken me so long to reply to this thread. Give the attached post a try. It uses ZM 3-axis moves for all moves except arcs.
to wich i strongly disagree my controler is great it has it has 8 buttons and joystick its simple and easy to use
you load the program from the panal set the oragen set the z and hit the run button
- Les Newell
- Site Admin
- Posts: 3677
- Joined: Thu May 11, 2006 8:12 pm
It is easy to reverse the Z axis:
I used ZM for rapids because sometimes SheetCam issues rapid moves to heights other than the safe Z. For instance when peck drilling you may want to only retract a small amount. Do you think using ZM moves with a high feed rate would work? It would be easy enough to tweak the post to do that.
Code: Select all
post.Number ( -endZ * scale, "0")
cool that easy lol
yea it would work just as well it just seemed simpler to use the pu becouse i know i could make it work and to check the ouput it breaks it up a bit so i can see the rapids in the file but my other program uses zm to rapid also so i will change that z- and give it a try useing zm for rapids an maybe ill add an extra space or like so i can reed the file more easly
i was haveing anothr play today and changed the zm on move to PD with an !pz and ran it wich worked well too
i was haveing anothr play today and changed the zm on move to PD with an !pz and ran it wich worked well too
- Les Newell
- Site Admin
- Posts: 3677
- Joined: Thu May 11, 2006 8:12 pm
-
- Posts: 2
- Joined: Tue Oct 03, 2023 8:37 pm
Re: postprosser not working for me
Hello,
I am having the same problem. I have tried downloading the post-processor files, but they are no longer available. Can someone repost the files?
Big thanks in advance.
I am having the same problem. I have tried downloading the post-processor files, but they are no longer available. Can someone repost the files?
Big thanks in advance.
- Les Newell
- Site Admin
- Posts: 3677
- Joined: Thu May 11, 2006 8:12 pm
Re: postprosser not working for me
Unfortunately quite a few download links broke when I upgraded to PHPBB3 some years ago back. It took a bit of hunting though backups but I think this may be the file you want.
- Attachments
-
- hpgl_3d_mimaki_184.scpost
- (4.15 KiB) Downloaded 223 times
-
- Posts: 2
- Joined: Tue Oct 03, 2023 8:37 pm
Re: postprosser not working for me
Thank you for your fast reply.
I will try it out. Hopefully, it works as I do not know how to make my own driver. xD
I will try it out. Hopefully, it works as I do not know how to make my own driver. xD
